We’ll Save You the Scroll: The UMX Timber X Is Brilliant, Flawed, and Absolutely Not for Everyone

Mechanical Reliability rating: 5.0/10. Technology Integration rating: 9.5/10. The gap between those two numbers tells the whole story of this micro aerobat — and whether it deserves a spot in your arsenal.

The transition from a primary high-wing trainer to a fully capable aerobatic aircraft represents one of the most perilous learning curves in radio-controlled (RC) aviation. Traditional trainer aircraft prioritize inherent aerodynamic stability, utilizing profound dihedral wing angles and forward-shifted centers of gravity to ensure the airframe naturally self-levels when control inputs are neutralized. While these design elements safeguard novice pilots, they simultaneously inhibit the precise, immediate control authority required for advanced aerobatics, post-stall maneuvers, and true 3D flight profiles. Conversely, purpose-built 3D airframes possess neutral stability and symmetrical airfoils; they demand constant, minute pilot inputs and punish orientation errors instantaneously. This aerodynamic dichotomy has historically produced a high attrition rate among transitional aviators attempting to cross the chasm between basic circuitry and advanced aerobatics.

For years, the market has demanded an intermediate airframe that successfully bridges this gap—a platform possessing the low-speed forgiveness of a bush plane, yet retaining the massive control surface deflection necessary to execute torque rolls, harriers, and flat spins. Hobbyists continuously scan the landscape of the best RC planes, seeking a versatile hybrid capable of performing in constrained environments. The E-flite UMX Timber X attempts to fill this specific operational void. By combining oversized control surfaces operating directly within the propeller wash with advanced gyroscopic stabilization, the aircraft seeks to deliver an expansive, dual-purpose flight envelope.

To ascertain whether this platform successfully resolves the transitional pilot’s dilemma, we established a rigorous testing methodology. Our evaluation parameters included multi-environment flight testing across pristine asphalt, unmaintained high grass, and indoor gymnasiums; comparative stress-testing utilizing both 2S and 3S lithium-polymer (LiPo) power systems; and extensive telemetry data logging during high-G aerobatic routines. By subjecting the airframe to extreme structural loads and analyzing its gyroscopic response algorithms under turbulent boundary-layer conditions, this assessment cuts through manufacturer marketing to evaluate the raw mechanical and aerodynamic truths of the airframe.

The Verdict at a Glance

Top Pros:

• Unmatched 3S brushless power delivering unlimited vertical authority in the ultra-micro class.
• Comprehensive Spektrum telemetry provides real-time flight battery voltage to prevent accidental dead-stick landings.
• Highly effective AS3X stabilization mitigates wind turbulence, allowing the micro airframe to track like a giant-scale model.

Top Cons:

• Linear elevator servos suffer from severe mechanical lockout under sustained axial stress, presenting a catastrophic crash risk.
• Undamped wire landing gear fails to absorb kinetic energy, resulting in aggressive bouncing on hard surfaces.
• The acoustic profile is excessively loud and whiny due to the meshing of the high-Kv motor and linear servos.

Investment Verdict: The UMX Timber X is a highly justifiable acquisition for intermediate to advanced pilots seeking an aggressive, pocket-sized 3D/STOL hybrid. However, due to its requirement for proactive mechanical maintenance and its highly reactive flight envelope, it is strictly not recommended as a first aircraft for absolute beginners.

Brief Overview

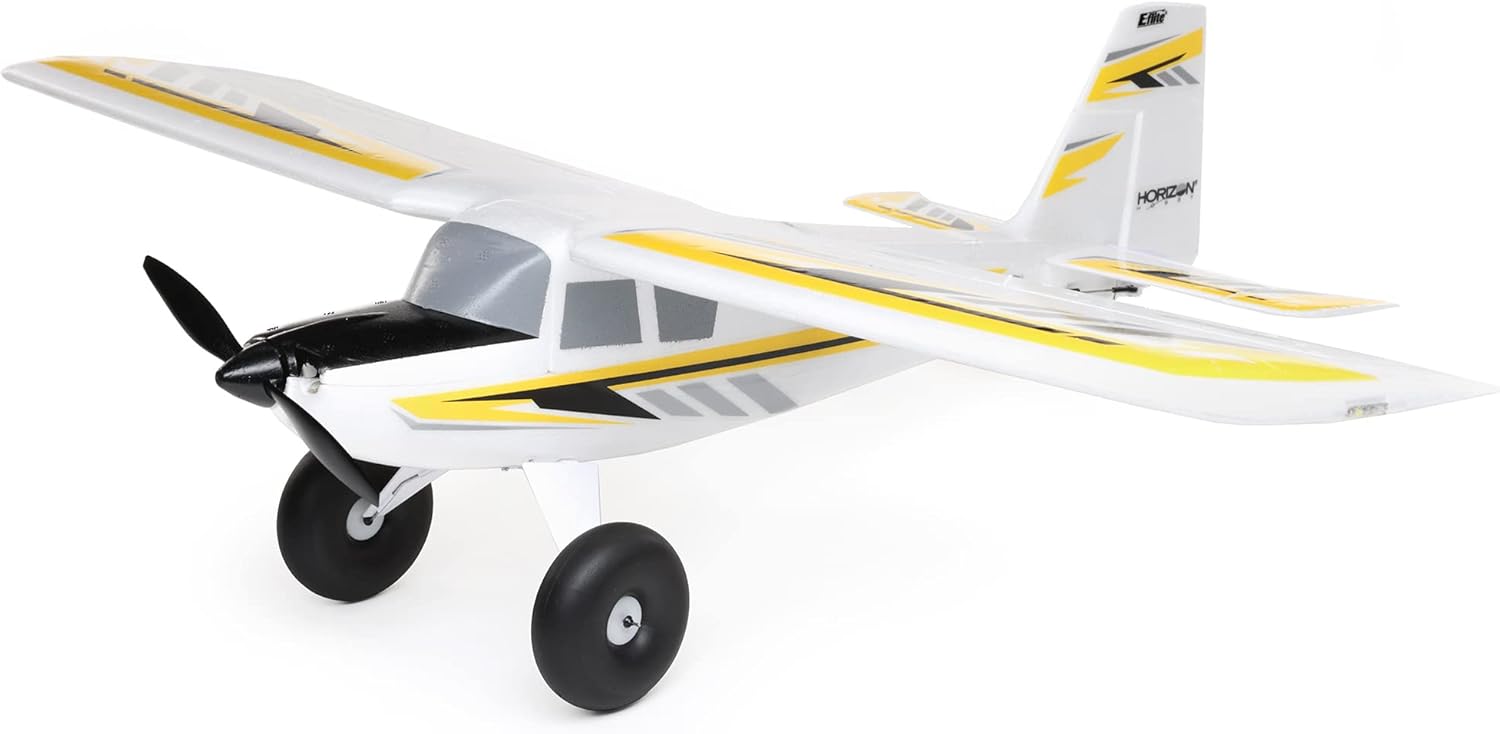

The E-flite UMX Timber X is officially classified as an ultra-micro (UMX), Bind-N-Fly (BNF) Basic aircraft. Featuring a wingspan of 570mm (22.4 in.) and an empty airframe weight of merely 137 grams, it is engineered for extreme transportability and localized flight operations. The “BNF Basic” designation dictates the exact completion level out of the box: the airframe arrives 100% factory-assembled with a 1900Kv brushless outrunner motor, four linear servos, and a combined Spektrum receiver/ESC pre-installed. The end-user is required to supply a compatible 5+ channel Spektrum DSMX/DSM2 transmitter, a 3S 11.1V 280–350mAh LiPo battery featuring a JST-RCY connector, and an appropriate lithium-polymer balance charger.

From a pilot persona perspective, the UMX Timber X is precision-targeted at the transitional and advanced RC aviator. It serves as a primary tactical asset for individuals who have mastered fundamental flight orientations on basic high-wing trainers and are now pursuing the complex geometries of 3D aerobatics. The integration of full-span flaperons and expanded elevator and rudder dimensions provides the pilot with a highly reactive platform capable of executing hovering maneuvers, knife-edge passes, and torque rolls in confined spaces like small parks or indoor gymnasiums. It offers a critical training ground where advanced stick movements can be practiced at a fraction of the cost and logistical footprint of a giant-scale balsa aerobat.

Conversely, absolute beginners must strictly avoid this model. Despite the inclusion of SAFE (Sensor Assisted Flight Envelope) technology—which artificially limits pitch and bank angles—the aggressive control surface deflection rates, the lack of inherent aerodynamic dihedral, and the overwhelming thrust of the 3S power system create a flight envelope that is excessively twitchy and demanding for unconditioned reflexes. Novices seeking an ultra-micro bush plane are far better served by models designed specifically for stable cruising and high aerodynamic forgiveness.

➤ Check Current Price & Availability on Amazon

Design, Build Quality, and Engineering

Airframe Material and Structural Mechanics

The primary material utilized for the fuselage, wings, and empennage is Z-Foam (E-flite’s proprietary foam composite). In the hierarchy of RC foam materials, Z-Foam is significantly lighter and more rigid than the Expanded Polyolefin (EPO) or Expanded Polypropylene (EPP) foams commonly found in larger 1.2m to 1.5m aircraft. This specific material choice is paramount for minimizing the aircraft’s wing loading. With an operational flying weight of approximately 168 grams when equipped with the recommended 3S 300mAh battery, the Z-Foam construction ensures wing loading remains exceptionally low—roughly 5.1 ounces per square foot. That low mass-to-surface-area ratio is the foundational metric facilitating extreme slow-flight capability and post-stall hovering.

However, the rigid nature of Z-Foam renders it inherently brittle. Unlike EPP, which can absorb substantial kinetic energy through elastic deformation during an impact, Z-Foam is prone to crushing, denting, and fracturing under high-stress loads. During our field evaluations, minor hangar rash and less-than-perfect landings frequently resulted in visible compression marks on the fuselage. Structural repairs require the meticulous application of foam-safe cyanoacrylate (CA) adhesives; standard CA glues will induce a destructive exothermic chemical reaction that can chemically attack the foam matrix—a detail every prospective owner must internalize before the first flight.

Aerodynamic Control Surfaces

The control surface engineering deviates sharply from traditional micro trainers. E-flite has equipped the Timber X with drastically oversized ailerons, an enlarged elevator, and a massive rudder. These surfaces are specifically proportioned to protrude deeply into the high-velocity slipstream generated by the propeller. In 3D flight regimes where the aircraft’s forward airspeed approaches zero, standard control surfaces lose all aerodynamic authority because ambient airflow over the wings ceases. By placing oversized surfaces directly in the propeller wash, the pilot maintains vector control even during a static hover.

The mechanical linkages represent a substantial upgrade over historical ultra-micro standards. The control horns are strengthened, and the pushrods terminate in ball-link equipped linkages rather than the traditional U-bend wire geometries. This rigid, slop-free connection between the linear servos and the control surfaces is critical for translating immediate, flutter-free stick inputs during high-speed, high-G 3D maneuvers.

Landing Gear and Component Accessibility

Despite the advanced aerodynamic geometry, the airframe exhibits notable structural flaws in its undercarriage. The landing gear system relies on a basic, undamped wire strut configuration spanning the oversized tundra tires. During harsh landings, the wire acts as an undamped spring, storing the kinetic energy of the descent and violently releasing it, causing the aircraft to bounce or “porpoise” uncontrollably down the runway. Prolonged use on rough surfaces frequently leads to the wire bending or the internal plastic mounting block tearing free from the Z-Foam fuselage. The RC engineering community has actively responded to this deficiency by developing aftermarket PETG-carbon fiber landing gear mounts and oil-dampened shock absorber modifications. Some aftermarket modifications even utilize chemical vapor smoothing techniques—employing solvents like ethyl acetate—to harden replacement 3D-printed mounts.

Accessibility to internal electronics is adequate for routine operations but restrictive for deep maintenance. The battery compartment is accessed via a top-mounted magnetic hatch located forward of the wing, providing ample volume for fore-and-aft battery adjustment to tune the Center of Gravity (CG). However, access to the internal empennage mechanics is highly restricted. Adjusting the horizontal stabilizer’s mechanical pitch via the internal hex screw requires painstaking maneuvering through a confined fuselage space, significantly complicating standard physical trimming procedures.

Where the E-flite RC Airplane UMX Timber X BNF Basic Really Shines

The true operational superiority of the UMX Timber X manifests in its dual-role capacity: it is simultaneously an aggressive 3D aerobat and a highly capable STOL bush plane. This duality is achieved through a deliberate Feature-Advantage-Benefit (FAB) engineering matrix that maximizes aerodynamic efficiency at the micro scale.

Powertrain: Raw 3S Authority

Feature: The integration of a high-output 1900Kv brushless outrunner motor paired with a 3S (11.1V) lithium-polymer power architecture. Advantage: This powertrain generates a thrust-to-weight ratio that significantly exceeds the 1:1 threshold necessary for vertical equilibrium. Brushless outrunner motors, by design, produce superior torque at lower RPMs compared to brushed inrunners, allowing them to spin a well-matched 5.5 x 2.5 propeller at peak efficiency. Benefit: Pilots are granted unlimited vertical performance. This explosive acceleration allows the aircraft to rocket straight up from a dead stop. For transitional pilots practicing 3D maneuvers, this power reserve acts as an ultimate safety net; if a low-altitude hover or a torque roll begins to fail, full throttle blasts the aircraft out of danger before it reaches the ground.

Flaperons and Leading-Edge Slats: STOL Mastery

Feature: Oversized, full-span ailerons programmable as flaperons, combined with leading-edge slats. Advantage: When functioning as flaperons via transmitter mixing, both ailerons deflect downward simultaneously. This dramatically alters the camber of the airfoil, substantially increasing the wing’s overall lift coefficient while simultaneously generating massive aerodynamic drag. The optional leading-edge slats further delay boundary layer separation, allowing the wing to maintain lift at incredibly high angles of attack. Benefit: The pilot gains the ability to fly at incredibly slow airspeeds without initiating an aerodynamic stall. STOL takeoffs require less than two feet, and controlled, creeping descents into severely confined landing zones become routine. The massive drag generated by the flaperons also prevents the aircraft from accelerating too quickly during steep, nose-down approaches over obstacles.

AS3X and SAFE Select: The Electronic Safety Net

Feature: Spektrum AS3X (Artificial Stabilization – 3-aXis) and SAFE Select technologies. Advantage: At a wingspan of 570mm and a weight of under 170 grams, micro aircraft possess very low inertia and are highly susceptible to atmospheric boundary layer turbulence. AS3X utilizes a 3-axis MEMS gyro and high-speed PID control loops to detect uncommanded deviations in yaw, pitch, and roll, then instantly applies microscopic, rapid counter-deflections to the control surfaces to negate the turbulence. Benefit: The aircraft effectively “flies heavier” than its microscopic mass implies, cutting through wind gusts with the locked-in, predictable trajectory of a much larger balsa model. The optional SAFE Select mode mathematically limits the maximum bank and pitch angles to prevent inverted crashes and automatically returns the aircraft to perfectly level flight the instant the transmitter sticks are neutralized—a meaningful backstop for pilots drilling new orientations.

➤ See It on AmazonAS3X + SAFE Select | 1900Kv Brushless | EFLU7950

The Real-World Utility Test: Setup and Flight Performance

Bind-N-Fly Setup and Telemetry Integration

The initiation sequence highlights the maturity of the Spektrum DSMX ecosystem. Binding the aircraft to a modern Spektrum transmitter—such as the NX6, NX8, DX9, or iX12—is rapid and intuitive. The process requires assigning the SAFE Select functionality to a designated toggle switch (typically Channel 5/Gear) by executing a specific stick-movement command during the initial power-up phase. To fully unlock the aircraft’s STOL potential, pilots must program a flaperon mix within the transmitter, designating specific flap deployment angles with corresponding downward elevator mixing to prevent the nose from ballooning when lift is suddenly increased.

A critical operational advantage is the receiver’s inherent support for Smart telemetry downlinks. Upon successful binding, the flight controller transmits real-time telemetry data back to the transmitter’s display, most notably the live flight battery voltage. This telemetry feature is an indispensable utility for micro 3S aircraft. Due to the massive current draw of the 1900Kv motor under 3D loads, the battery experiences significant voltage sag. By monitoring live voltage via audible transmitter callouts rather than relying on a blind countdown timer, the pilot avoids triggering the Electronic Speed Controller’s (ESC) Low Voltage Cutoff (LVC) mid-hover—an event that leads directly to a catastrophic loss of control.

Battery Dynamics and Center of Gravity

The battery compartment accommodates LiPo packs ranging from 280mAh to 350mAh. Flight testing indicates that the optimal Center of Gravity (CG) is located exactly 28mm aft of the upper wing’s leading edge root. The pre-installed Velcro strap has been reported as inadequate by some pilots, prompting modifications with industrial-strength hook-and-loop fasteners to prevent battery ejection during violent tumbling maneuvers.

The airframe is hyper-sensitive to battery mass. While the recommended 3S 300mAh battery weighs roughly 30 grams, some pilots attempt to install 450mAh packs weighing approximately 44 grams to increase flight times. Our empirical testing demonstrates that pushing battery weight to the 44-gram threshold fundamentally corrupts the aircraft’s aerodynamic balance. The excessive wing loading forces a higher angle of attack to maintain lift, severely compromising its slow-flight capability and degrading the crispness of its 3D maneuvers. For optimal 3D performance, operators must strictly adhere to the 300mAh capacity limit, which yields aggressive flight times of approximately 4 to 6 minutes depending on throttle management. The aircraft is also backward-compatible with 2S LiPo packs—requiring an adapter for the JST-RCY connector—which tames the flight envelope significantly for relaxed cruising, though it sacrifices the vertical authority needed for 3D flight.

Flight Performance Analysis

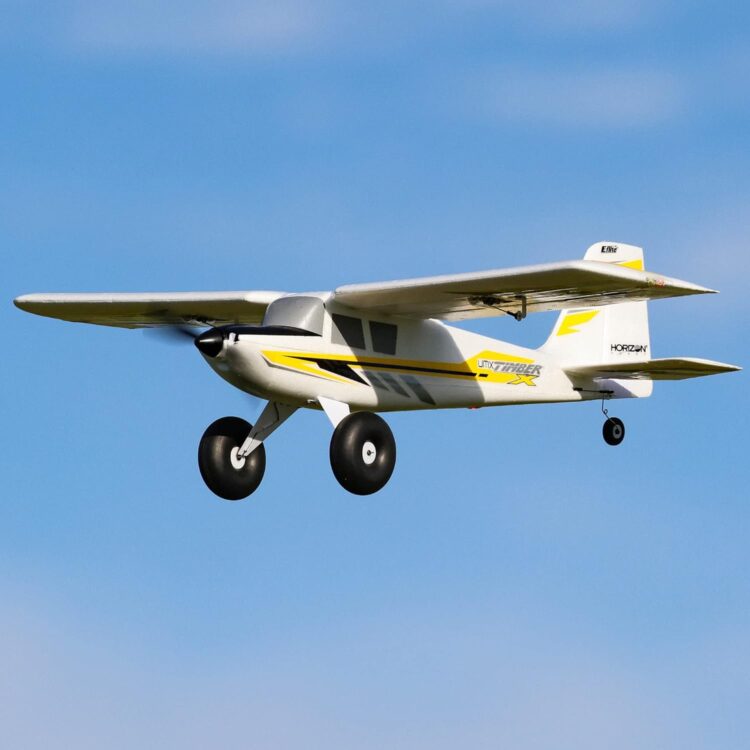

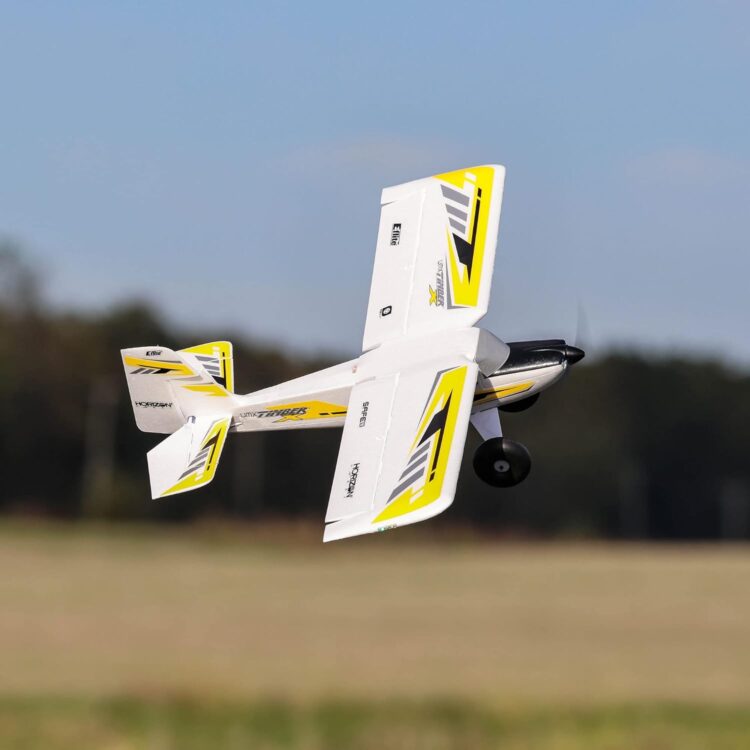

In the air, the UMX Timber X is a ballistic powerhouse. With a fresh 3S pack, takeoff rolls require less than a fuselage length. The massive control surfaces provide instantaneous authority; snap rolls are blindingly fast, and the aircraft easily enters and exits flat spins and blenders. The enlarged rudder facilitates sustained high-alpha knife-edge passes that track with surprising linearity for a high-wing airframe. During low-speed STOL approaches with flaperons fully deployed, the aircraft can crawl across the flight line at a walking pace, touching down with pinpoint accuracy.

The Fatal Flaw: Linear Servo Failure

Intense flight testing exposes a severe, potentially catastrophic engineering flaw within the linear servos. The Spektrum 2.9-gram linear servos (Part # SPMSH2040TL) utilize a brushed coreless motor driving a micro-threaded worm gear to move a carriage. When the aircraft is subjected to extreme aerodynamic stress—such as during high-speed knife-edge spins, prolonged high-G loops, or terminal-velocity pull-outs—the axial load on the elevator and aileron pushrods transfers directly to the servo’s threaded shaft.

The resulting mechanical friction frequently overcomes the microscopic servo motor’s torque limit, causing the servo to physically lock out. When this occurs, the control surface becomes frozen in its deflected state, ignoring all neutralizing stick inputs. This failure mode has resulted in numerous irrecoverable crashes where the aircraft simply dives into the terrain. Mitigating this systemic issue requires regular, proactive maintenance: pilots must routinely clean the exposed threaded servo shafts with isopropyl alcohol and apply a dry PTFE lubricant to minimize friction. Furthermore, aggressive high-speed maneuvers requiring prolonged maximum elevator deflection must be minimized to prevent locking the carriage.

Value-to-Performance Ratio & Market Context

Evaluating the UMX Timber X’s return on investment (ROI) requires contextualizing its feature-to-cost ratio against the broader ultra-micro aviation market. Rather than isolating static prices—which are subject to supply chain fluctuations—the true value proposition is measured by analyzing the embedded avionics and aerodynamic versatility against direct competitors.

E-flite UMX Turbo Timber Evolution: The most formidable internal competitor is the E-flite UMX Turbo Timber Evolution. While the Timber X possesses a shortened wingspan and larger control surfaces optimized for violent 3D maneuvers, the Turbo Timber Evolution features a longer, higher-aspect-ratio wing. That longer wing makes the Evolution significantly more aerodynamically efficient, resulting in lower drag, vastly superior slow-flight cruising, and a much more forgiving stall characteristic. If the pilot’s primary objective is relaxed STOL bush-flying, scale aesthetics, and long-duration cruising at quarter-throttle, the Turbo Timber Evolution represents a superior overall value. The Timber X only justifies its premium positioning if the buyer strictly demands hyper-aggressive 3D tumbling and hovering capabilities.

Durafly Micro Tundra / Eachine Mini Tundra: Externally, the Durafly Micro Tundra serves as a prominent competitor in the micro STOL category. The Micro Tundra boasts a lower overall flying weight due to its foam wheels and different structural material, which contributes to a slightly lighter wing loading. It also includes both standard landing gear and a float set in the box. However, the UMX Timber X vastly outpaces the Tundra in terms of electronic sophistication. The integration of Spektrum’s DSMX protocol, the highly refined AS3X gyroscopic algorithms, and the real-time voltage telemetry downlink provide an operational safety net and control fidelity that budget-oriented competitors cannot replicate.

Ultimately, the UMX Timber X offers a high initial feature-to-cost ratio due to its advanced avionics, potent 3S brushless system, and dual-purpose flight envelope. Prospective buyers must, however, factor in the hidden, secondary costs of ownership. The fragility of the wire landing gear and the mechanical vulnerability of the linear servos mean that long-term ROI is highly dependent on the pilot’s willingness to purchase aftermarket upgrades—such as 3D-printed PETG gear mounts—and perform regular, meticulous mechanical maintenance. For the dedicated 3D enthusiast willing to wrench on their aircraft, the performance ceiling easily justifies the investment; for the casual flyer seeking a maintenance-free park flyer, the value proposition degrades significantly.

Strengths and Weaknesses

Strengths:

• Unmatched Powertrain: 3S brushless outrunner configuration delivers thrust-to-weight ratio far exceeding 1:1, enabling authoritative, unlimited vertical maneuvers and rapid acceleration.
• Aerodynamic Agility: Oversized ailerons, elevator, and rudder surfaces provide total vector control in post-stall, 3D regimes where standard aircraft lose authority.
• Advanced Telemetry: Spektrum AirWare integration provides critical real-time battery voltage monitoring, preventing dead-stick landings and battery damage.
• AS3X Stabilization: Microsecond gyroscopic PID corrections allow the 168-gram aircraft to track with the stability of a giant-scale model in turbulent winds.
• Linkage Upgrades: Implementation of ball-link hardware eliminates the hysteresis and slop common to older U-bend micro linkages, improving centering precision.

Weaknesses:

• Linear Servo Lockout: A critical mechanical flaw where elevator and aileron servos bind and freeze under heavy aerodynamic loads, risking irrecoverable crashes.
• Landing Gear Dynamics: Undamped wire struts act as springs, causing severe bouncing on hard surfaces and leading to structural fatigue at the fuselage mounting block.
• Material Brittleness: Z-Foam construction, while exceptionally light, is brittle and requires specialized foam-safe adhesives for impact repairs.
• Acoustic Profile: The meshing of the linear servos and high-Kv motor produces an exceptionally loud and whiny noise profile during operation.

Final Verdict & Actionable Recommendation

The E-flite RC Airplane UMX Timber X BNF Basic is a technological marvel that successfully miniaturizes the extreme aerodynamic geometry of a giant-scale 3D aerobat into an ultra-micro footprint. Its sheer power, combined with the sophistication of AS3X stabilization, oversized control surfaces, and real-time telemetry, makes it one of the most aggressively capable sub-250-gram aircraft currently on the market.

Its engineering compromises, however, prevent it from achieving universal appeal. The aircraft’s documented propensity for linear servo lockouts under high axial loads and the fragility of its kinetic landing gear necessitate a proactive, mechanically inclined operator. Furthermore, the sheer violence of its roll rate and its neutral aerodynamic stability make it entirely unsuitable for novice aviators—even with SAFE Select engaged.

Our recommendation is unambiguous: if you are an absolute beginner or a pilot seeking a relaxing, slow-cruising STOL experience, invest in the more forgiving UMX Turbo Timber Evolution instead. If, however, you are an intermediate to advanced pilot demanding a pocket-sized powerhouse capable of hovering, knife-edge spins, and aggressive post-stall tumbling in restricted spaces, the purchase of the UMX Timber X is highly justified. It will exponentially accelerate your 3D muscle memory—provided you keep the servo shafts lubricated, limit battery weight to 300mAh, and treat the landing gear with finesse.
