Tamiya 1/48 Chance Vought F4U-1/2 Bird Cage Corsair Review: Is This 30-Year-Old Kit Still Worth Your Money in 2026?

A 1996 tooling competing in a 2026 market. We put Tamiya’s legendary Corsair through its paces to find out if the classic still earns its keep—or if it’s finally time to move on.

Brief Overview

The Tamiya 1/48 Chance Vought F4U-1/2 Bird Cage Corsair (Kit #61046) is a 1/48-scale styrene representation of one of World War II’s most storied carrier-based fighters. The original aircraft’s design is inseparable from its Pratt & Whitney R-2800 Double Wasp engine—a 2,000-horsepower powerplant demanding a 13-foot, 4-inch propeller so large that engineers were forced to adopt a distinctive inverted gull wing to provide adequate ground clearance without resorting to impractically long, fragile landing gear legs. The ‘Bird Cage’ designation refers to the heavily framed canopy structure of the F4U-1, which first entered combat in the Pacific Theatre in February 1943; the F4U-2 night fighter retained the same canopy, inheriting the designation. For builders researching the best model airplane kits for historical accuracy and assembly confidence, this 1996-tooling release remains a reference standard in 1/48 scale naval aviation.

Who This Kit Is For

Kit #61046 is designed primarily for beginner-to-intermediate aviation modelers seeking an iconic Pacific Theatre warbird without a punishing build sequence. Tamiya’s engineering precision sets a genuinely low skill floor—parts fit with enough accuracy that a first-time assembler isn’t fighting the kit—while the variant choices and surface detail provide enough depth to reward an intermediate builder through to the finish line.

Key Engineering Features

Out of the box, the kit offers meaningful build choices that most entry-level styrene releases don’t provide. Modelers can construct either the F4U-1 standard fighter or the F4U-2 night fighter variant, the latter including a detailed wingtip-mounted radar pod and a gun port cover plug. Wings may be assembled in either the folded or extended flying position, with the fold mechanism accurately capturing the forward-tilted, toed-in joint geometry of the real aircraft. The engine compartment is highly detailed, the cockpit is rendered as the historically correct floorless structure, and a seated pilot figure is included. Optional underwing stores—a 1,000-pound bomb and a drop tank—complete the ordnance options.

Check Current Pricing & Availability on Amazon

Pros & Cons

Pros

• Exceptional fuselage and engine fit. The main fuselage halves mate with the precision Tamiya is known for, requiring only light seam cleanup; major engine parts seat cleanly with minimal filler required.
• Genuine out-of-box variant flexibility. Dual F4U-1/F4U-2 build options combined with folded or extended wing choices give this single release a wider narrative range than most comparable kits.
• Highly detailed cockpit tub and engine. The floorless cockpit structure and Pratt & Whitney engine are detailed enough to satisfy most display-standard builds without resin aftermarket upgrades.
• Crisp recessed panel lines and rivet detail. The surface texture is well-defined throughout—an ideal foundation for pre-shading, post-shading, and filter weathering techniques.
• Solid, correctly seated landing gear. Robust socket receivers ensure the gear legs sit at the correct angle and carry the model’s weight without splay.

Cons

• Prominent wing joint gaps in the extended position. The outer wing bulkhead commonly prevents the outer and inner wing panels from closing flush, producing a step and gap that requires filling and rescribing.
• Problematic Scalemaster decals. The included waterslide sheets carry an excessively thick carrier film that silvers easily over recessed panel lines and responds poorly to standard setting solutions like Micro Sol.
• Reversed rear window part numbers. The port and starboard part numbers for the small ovoid rearward-view transparencies are transposed in the instruction sheet—following the plans as printed produces a poor fit.
• Flaps engineered for the deployed position only. Achieving retracted flaps requires cutting the locating pegs, sanding hinge points, and filling the boarding step on the starboard inboard flap.
• Inaccurate tailwheel assembly. The tailwheel sits too high and lacks the correct smaller hard-rubber tire profile of the actual aircraft.

Kit Contents & Build Analysis

Parts, Packaging & First Impressions

Kit #61046 contains approximately 124 parts molded in medium-grey polystyrene, a clear sprue carrying the multi-pane canopy and fuselage transparencies, and a comprehensive instruction booklet. In Tamiya’s manufacturing process, polystyrene beads are heated to approximately 450°F (230°C) and injected under high pressure into precision steel molds—a method that accounts for the crisp, consistent detail visible across every runner. The sprues are arranged logically to support a sensible build sequence. The clear parts are thin and exceptionally transparent, which matters when the finished aircraft will be displayed with the canopy closed. The included Scalemaster waterslide decals carry a high carrier-film-to-ink ratio—a liability that will introduce complications at the markings stage. The sprues-to-complexity ratio suits the intermediate modeler well: detailed enough to be rewarding, without anything feeling needlessly fragile.

Cockpit & Interior Construction

Interior work centers on a floorless cockpit tub that accurately captures the structural arrangement of early Corsair production. The molded side consoles, throttle quadrant, trim wheel, and seat frame are all crisply defined, and no aftermarket substitution is required to achieve a credible display-standard interior. We recommend detailing the instrument panel by carefully punching out individual instrument faces from the main decal sheet and sealing each dial face with a small drop of gloss clear acrylic to replicate glass lenses—a straightforward technique that produces a noticeably more convincing result. The seat harness is supplied as a flat decal; it reads adequately in context but is a common candidate for replacement with lead foil or photo-etched seatbelts on more detail-oriented builds.

For color accuracy, the historical interior shade for early Birdcages is Dull Dark Green, matching FS 34092. A reliable working mix is two parts Tamiya XF-5 Flat Green to one part XF-8 Flat Blue. Avoid the considerably brighter Interior Green (FS 34151)—that shade was introduced during later F4U-1A production and is historically incorrect for the early Birdcage interior.

Airframe Assembly & Fit

The main fuselage halves join with Tamiya’s characteristic precision—light seam cleanup with a hobby knife is typically all that’s required before moving on. The inverted gull wing is where the build demands closer attention.

Building the wings extended routinely produces a pronounced step and gap at the outer-to-inner wing panel joint. The root cause is the outer wing bulkhead geometry, which prevents the panels from pulling flush without intervention. The proven fix is to add a styrene strip inside the wing fold joint as a structural shim, allowing the panels to close tightly before bonding with cyanoacrylate adhesive. Plan to rescribe any panel lines lost during fairing.

The flaps present a separate challenge. They are engineered strictly for the deployed configuration. Achieving retracted flaps requires cutting the locating pegs, sanding the hinge attachment points smooth, and filling the boarding step on the starboard inboard flap with styrene strip and surfacer—that boarding step is a feature of the later F4U-1D and was simply absent on the early F4U-1 Birdcage.

Canopy & The “Bird Cage” Feature

The multi-pane birdcage canopy is molded with impressive clarity and captures the aggressive framed aesthetic of the early Corsair. Masking the individual framing sections is time-consuming work that beginners should budget extra bench time for—precision here affects the finished model more visibly than almost any other painting step. Before assembly, resolve the critical instruction anomaly: the part numbers for the small ovoid rearward-view transparencies on the fuselage sides are reversed in the printed plans. Swapping them port to starboard delivers a clean click-fit; following the instructions as printed leaves the parts sitting proud with visible gaps.

Painting, Markings & Decals

Early Birdcages wore two-tone Navy Blue-Gray over Non-Specular Sky Gray (ANA 602) camouflage. The inner surfaces of the engine cowling and the main landing gear wells were finished in the same underside Sky Gray, while the tailwheel well received Salmon primer—a distinctive pale pinkish-brown chromate primer referenced at 2.5 YR 6/8 on the Munsell scale, produced by mixing Indian Red pigment with Zinc Chromate Yellow.

The Scalemaster decals are the kit’s most significant practical liability. They are notably stiff, refuse to conform to the kit’s recessed panel lines, and react poorly to standard setting solutions like Micro Sol, producing wrinkling and silvering that can undermine an otherwise solid build. We strongly recommend sourcing aftermarket decal sheets or paint masks for the national insignia and primary markings to achieve a convincing, painted-on finish.

Where the Tamiya 1/48 Bird Cage Corsair Really Shines

Understood and prepared for, the known assembly quirks become minor waypoints rather than obstacles, and what remains is one of the most satisfying builds available in 1/48-scale WWII naval aviation.

The core reason this 1996 tooling continues to attract builders is straightforward: it is reliable. Modern multi-media toolings from competing manufacturers often arrive with fit issues and over-engineered subassemblies that drain a modeler’s patience before the first paint coat goes down. The Tamiya Corsair delivers a predictable, structured build sequence that maintains bench momentum and keeps the builder focused on the work that actually matters—painting, pre-shading, and weathering the finished airframe. There is real craft satisfaction in that.

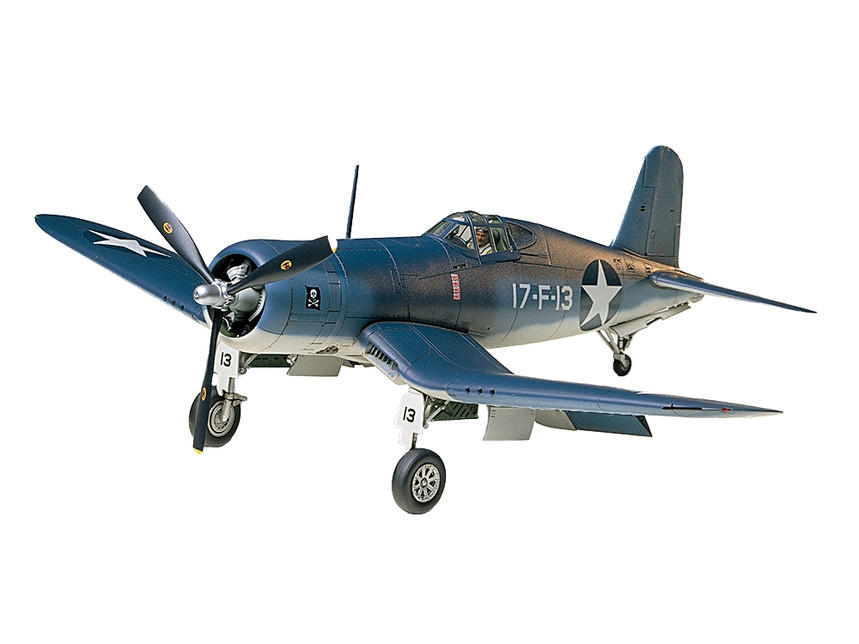

The visual payoff is proportionate to the investment. The completed replica renders the Corsair’s defining physical characteristics faithfully: the aggressive inverted gull wing silhouette, the barrel fuselage, and the distinctive multi-framed cockpit of the early “pirate of the skies” are all immediately recognizable in 1/48 scale. The clean engineering joints throughout the main airframe mean that a modeler who addresses the known trouble spots ends up with a structurally sound model that stands on its own landing gear without lean or splay—a credible display piece that holds up to close scrutiny.

For beginners, this kit occupies a strategically important position in the skill progression. The challenges it presents—managing wing-fold alignment, correcting the flap configuration, masking a complex multi-pane canopy—are genuine craft problems, but they are scaled to be solvable without advanced tools or years of accumulated experience. Each one teaches a discrete technique that transfers directly to future, more demanding builds. That is the signature quality of a well-designed stepping-stone kit: it builds craft confidence rather than eroding it.

There is also the matter of historical resonance. Building an F4U-1 in the markings of Marine Squadron VMF-213 during the Guadalcanal campaign, or recreating an aircraft from Kenneth Walsh’s VMF-124, connects the builder to a specific, documented episode in World War II Pacific Theatre history. The clean engineering and solid landing gear weight distribution mean the finished model performs equally well as a standalone shelf piece or as the centerpiece of a Pacific island runway diorama.

Who Should Buy It

Ideal User Profiles

The Transitioning Novice. If you’ve worked through snap-together kits and are ready to commit to serious historical scale replicas—and to your first airbrush project—this Corsair is among the most forgiving entry points in 1/48-scale WWII aviation. The logical sprue layout and clean assembly joints prevent the disorientation and rework that stall beginners on poorly engineered kits.

The Historical Purist. For modelers driven by accuracy to the early Solomons campaign, Kit #61046 delivers. The Birdcage canopy, the optional F4U-2 night fighter radar pod, and the correctly dimensioned floorless cockpit tub all reflect careful attention to the F4U-1 and F4U-2 production variants. This is not a generic Corsair; the early-war configuration is engineered into the kit’s structure from the ground up.

The Value-Conscious Modeler. High-end Japanese molding precision, crisp recessed panel lines, and meaningful out-of-box variant choices—at a price point that doesn’t require the outlay of contemporary multi-media releases—make Kit #61046 a consistent value benchmark in 1/48-scale WWII naval aviation.

Who Should Look Elsewhere

Advanced detailers seeking a modern, open-panel build experience—gun bays, fully detailed engine bay interiors, microscopic rivet patterns—will find this 1996 tooling insufficient and should explore newer multi-media releases, though they should be prepared to tackle the associated fit issues and incorrect spot-weld patterns those kits frequently bring. Modelers specifically interested in late-war or postwar variants—the F4U-1D, F4U-4, or F4U-5—will need a different kit entirely; this release is strictly limited to the early F4U-1 and the F4U-2.
