Before You Buy the Blade Fusion 360 Smart — Read This First

No transmitter. Ecosystem lock-in. A 3S power ceiling. Our hands-on evaluation surfaces every dealbreaker Horizon Hobby’s marketing doesn’t mention.

When the Intermediate Gap Becomes a Money Pit

There’s a specific moment every advancing RC pilot knows. You’ve exhausted what fixed-pitch micros can teach you, the simulator hours are logged, and now a genuine collective pitch machine is sitting on the workbench — and you’re quietly calculating how expensive the first crash will be.

For decades, that calculation was depressing for good reason. The intermediate segment demanded simultaneous mastery of flybarless controller tuning, voltage management, and spatial orientation recovery on a machine with zero tolerance for error. The Blade Fusion 360 Smart (BLH6150), engineered by Horizon Hobby, presents a direct counter-argument: a dual-plate carbon fiber and anodized aluminum chassis paired with the Spektrum Smart avionics ecosystem should make that transition not just survivable — but logical. We’ve evaluated the Fusion 360 Smart alongside the contenders in our best RC helicopters guide, and what follows is our evidence-based verdict on whether Horizon Hobby delivered.

Brief Overview

The Blade Fusion 360 Smart is a 360-class, collective pitch, flybarless (FBL) helicopter delivered exclusively in Bind-N-Fly (BNF) Basic configuration. That distinction matters immediately: no transmitter ships in the box. To fly, you’ll need a full-range, 6+ channel Spektrum DSM2/DSMX radio — the NX6, NX8, and iX series all qualify — along with a 3S 11.1V 2200mAh 50C+ LiPo battery with an IC3 or EC3 connector.

What earns this machine its place in the field is the electronics architecture. The Spektrum FC6250HX flight controller enables SAFE (Sensor Assisted Flight Envelope) technology with bank-angle limiting and automatic self-leveling, full AS3X 6-axis MEMS stabilization, Forward Programming entirely through the transmitter display screen — no laptop or USB cable required — and real-time Smart Telemetry streaming battery voltage, current draw, ESC temperature, and rotor RPM directly to the operator.

Paired with the Avian 45-Amp Smart ESC and mounted on a dual-plate carbon fiber and anodized aluminum chassis, this is not a scaled-up micro-trainer. It is built for the intermediate pilot who has reached the ceiling of fixed-pitch machines and wants genuine 3D collective pitch authority, backed by an electronic safety net comprehensive enough to protect the learning investment. The 3S (11.1V) power architecture is a deliberate design choice — one that favors a forgiving, buoyant flight envelope over brute 3D aggression.

See the Blade Fusion 360 Smart on Amazon →

Pros & Cons

Pros

• The dual-plate carbon fiber and aluminum chassis eliminates the torsional flex inherent in plastic-framed competitors, maintaining precise gear mesh alignment and shielding the MEMS sensors from chassis harmonics under heavy aerodynamic loading.
• The Avian 45A Smart ESC streams real-time voltage, RPM, and ESC temperature data directly to the transmitter, replacing arbitrary flight timers with programmable per-cell voltage alarms that protect the LiPo from irreversible over-discharge damage.
• SAFE technology with single-switch Panic Recovery autonomously returns the helicopter to within 4 degrees of absolute level from any disoriented attitude — a recovery measured in fractions of a second, not pilot reaction time.
• Forward Programming exposes all FC6250HX parameters through the transmitter display screen, bypassing the USB tethering and software configuration matrices required on traditional flybarless units.
• The oversized aluminum boom and belt-driven tail architecture eliminate boom support rods entirely, absorb landing shock loads elastically, and deliver the pirouette compensation and heading-hold authority that torque-tube tail designs cannot reliably sustain under real-world intermediate flying conditions.

Cons

• BNF Basic format requires separate purchase of a compatible Spektrum DSMX transmitter and Smart LiPo battery; full SAFE and telemetry functionality is ecosystem-locked to Spektrum hardware, limiting third-party peripheral choices.
• The SPMSH3055 cyclic servos incorporate intentional sacrificial shear gears that protect the motor and PCB in a crash — but those gears require periodic rebuilding, creating a recurring maintenance cost for pilots pushing into 3D territory.
• The 3S 3400Kv power architecture lacks the torque reserve to sustain governed head speeds through sustained smack-3D sequences such as continuous tic-tocs, producing measurable RPM decay under maximum collective loading.

What’s in the Box — and How Fast Can You Be Flying?

The Fusion 360 Smart arrives as a BNF Basic kit: factory-assembled, mechanically aligned, and electronically pre-tuned. The transmitter, flight battery, and charging infrastructure remain the operator’s responsibility to source.

Inside the box, the pre-installed avionics include the Spektrum FC6250HX flight controller, the 4651T 2.4GHz DSMX telemetry receiver, the Avian 45A Smart ESC, three SPMSH3055 sub-micro metal-geared cyclic servos, and one SPMSH3065 digital metal-geared tail servo. The helicopter arrives fitted with 350mm carbon fiber main rotor blades and 65mm composite plastic tail rotor blades.

Setup is where Spektrum’s Forward Programming earns its keep. Conventional flybarless commissioning requires binding the receiver, USB-tethering to a computer, and navigating software matrices to establish swashplate geometry and PID gyro gains. The Fusion 360 Smart removes that process entirely. Once the 4651T is bound to a compatible Spektrum transmitter, the FC6250HX parameters appear directly on the radio’s display screen.

From the factory, the swashplate arrives mechanically leveled and the pitch curves are pre-configured to a symmetric ±12 degrees of collective authority. Download the preset model profile, verify linkage tightness, secure the 3S pack to the carbon fiber battery tray, and initiate the spool-up sequence. From opening the box to the first hover: under thirty minutes. On a machine of this mechanical complexity, that is a genuine achievement.

Under the Canopy: What Horizon Hobby Actually Built

Remove the canopy and the engineering precision becomes immediately apparent. This is not a machine calibrated to hit a price point. It is engineered to survive the training process.

The main frame consists of dual carbon fiber side plates bolted to CNC-machined anodized aluminum bearing blocks and structural standoffs. Carbon fiber’s near-zero tensile elasticity keeps the main shaft perpendicular to the swashplate regardless of aerodynamic loading — which is critical for the FC6250HX, whose MEMS accelerometers depend on a vibration-rejecting aluminum lower case to isolate them from chassis harmonics. On injection-molded plastic frames, that isolation breaks down under heavy cyclic loads; here, it does not.

The fully rigid flybarless rotor head uses CNC-machined aluminum blade grips. Eliminating the mechanical flybar and its weighted stabilizer paddles sheds rotating mass and parasitic aerodynamic drag, directing available motor torque toward climbing performance and cyclic response. Three SPMSH3055 cyclic servos operate in a 120-degree eCCPM geometry, distributing aerodynamic loads symmetrically across all three units. Each servo delivers 0.053-second transit speed per 60 degrees and 2.6 kg-cm of torque. The gear train incorporates an intentional sacrificial shear gear: during a high-impact rotor strike, this component absorbs kinetic energy by shearing intentionally, protecting the servo’s PCB and motor from destruction. Replacement gear sets are economical, making this a cost-effective crash-protection strategy.

The tail uses a belt-driven architecture housed within an oversized aluminum boom — dimensionally substantial enough that the carbon fiber boom support rods standard on virtually all 450-class machines are eliminated entirely. The SPMSH3065 tail servo posts a 0.029-second transit speed, fast enough to hold heading through aggressive collective punch-outs without lag.

The powerplant is a 2221-size, 6-pole brushless outrunner rated at 3400Kv. Through an 11-tooth pinion meshing with a helical-cut main gear at a reduction ratio of approximately 12.27:1 to 13.5:1 — the 3400Kv motor spinning at a theoretical 37,740 RPM on 11.1V — theoretical unloaded head speed reaches 2,800 to 3,000 RPM. The helical gear cut — as opposed to straight-cut spur gears — engages multiple teeth simultaneously, delivering smoother power transfer and meaningfully reduced acoustic signature. Managing energy across the discharge cycle is the Avian 45A Smart ESC, which employs a 32-bit M4 ARM processor and active back-EMF governor to maintain a constant programmed head speed as battery voltage sags.

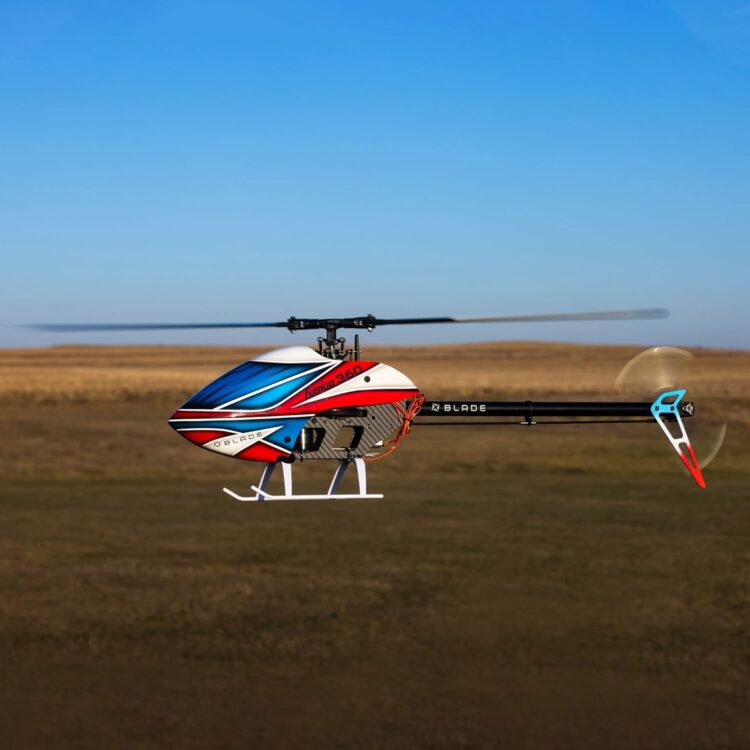

In the Air: Does the Fusion 360 Smart Actually Fly Like a Beginner’s Friend?

At 915 grams across a 796mm rotor disc, the Fusion 360 Smart’s defining aerodynamic property is low disc loading. The 3S 2200mAh LiPo is substantially lighter than the 6S packs used in aggressive 3D variants, reducing total aircraft mass while the swept disc area remains unchanged. The resulting flight character is buoyant and deliberate — what experienced pilots accurately call “floaty.” For a pilot learning inverted orientations or stall turns, this buoyancy provides critical fractions of a second of additional reaction time. The helicopter hangs when collective goes neutral; it does not drop.

At spool-up, the stiffness of the 350mm carbon fiber blades maintains a shallow coning angle, translating cyclic inputs to the airframe immediately without the phase lag that blade flex introduces. Lifting from the ground places the helicopter in Ground Effect — the high-pressure turbulent zone created by rotor downwash. Here, the FC6250HX’s AS3X algorithm is indispensable: 3-axis gyroscopes detect uncommanded pitch and roll deviations and apply micro-corrections to the swashplate thousands of times per second, producing hover stability that consistently impresses pilots transitioning from plastic-framed machines.

In forward flight, the FC6250HX compensates automatically for the dissymmetry of lift between the advancing and retreating blades, applying continuous forward cyclic to equalize disc loading. The Fusion 360 Smart consequently tracks through high-speed passes with minimal corrective input required.

SAFE technology enforces bank-angle limits in primary flight modes, preventing accidental inversions. In unrestricted 3D modes, the single-switch Panic Recovery overrides all pilot inputs and drives the airframe to a controlled, level attitude. Pilots developing complex aerobatics can push further, knowing that one switch aborts any orientation loss before it becomes an impact.

On a 3S 2200mAh pack, flight times run 4 to 6 minutes depending on collective management and governed head speed. The Avian 45A Smart ESC’s live telemetry allows operators to program a per-cell voltage threshold — for example, 3.5V under load — receiving both auditory and haptic warnings at the transmitter when that threshold is reached. The LiPo lands protected from irreversible internal cell damage, not flattened by an arbitrary timer.

Where the Blade Fusion 360 Smart Really Shines

What separates the Fusion 360 Smart from mechanically comparable platforms is its psychological impact on the operator. Horizon Hobby has engineered a machine that actively protects both the pilot’s financial investment and their confidence simultaneously.

The floaty 3S disc loading grants the reaction time that converts near-crashes into recoveries. The single-switch Panic Recovery ensures that orientation loss during a complex aerobatic maneuver does not end in a shattered airframe — it ends with the helicopter level and controllable within 4 degrees of the horizon. The Smart Telemetry ecosystem replaces battery anxiety with a precision voltage alarm, protecting the LiPo from the irreversible internal chemical damage caused by over-discharge.

Together, these systems accelerate the learning progression from an anxious intermediate to a confident 3D practitioner faster and more safely than any purely mechanical platform in this class can achieve. This helicopter doesn’t just tolerate the pilot’s mistakes — it actively helps them learn from those mistakes, rather than converting every orientation error into a repair invoice.

Blade Fusion 360 Smart (BLH6150) on Amazon

How the Fusion 360 Smart Stacks Up

Against the intra-brand Blade 330 S, the Fusion 360 Smart wins on construction quality. Both machines run 3S power and carry SAFE technology, but the 330 S is built on an injection-molded plastic chassis that flexes under heavy cyclic loading — distorting gear mesh geometry between the motor pinion and main drive gear, accelerating wear, and contaminating the FC6250HX’s MEMS sensors with chassis vibration. The Fusion 360 Smart’s carbon fiber frame eliminates that failure mode entirely, and the Avian 45A Smart ESC adds a telemetry data advantage the 330 S cannot match. For the marginal additional investment, the Fusion 360 Smart delivers a substantially longer mechanical lifespan and a more precise flight experience.

Against direct-drive micro platforms such as the OMPHobby M2 Evo and Goosky S2 Legend, the comparison turns on environment. Their approximately 400mm rotor diameter makes them susceptible to wind shear and atmospheric turbulence. The Fusion 360 Smart’s 796mm disc carries sufficient inertia to push through real outdoor conditions, providing the stability and visual tracking presence required for open flight-line aerobatics — a capability the 200-class direct-drives cannot replicate. Where micro direct-drives excel in confined backyard spaces, the Fusion 360 Smart dominates the flight line.

Who Should Buy It

The Fusion 360 Smart is precisely calibrated for pilots who have outgrown fixed-pitch micros and are ready for collective pitch authority, but still need — and will benefit from — a genuine electronic safety net.

The advancing intermediate transitioning from simulators or sub-micro machines will find SAFE technology and Panic Recovery directly address their central concern: crashing before they’ve learned anything useful. The telemetry-invested Spektrum DSMX operator who wants data-driven battery management will find the Smart ecosystem delivering exactly what it promises.

Absolute beginners should look elsewhere. A 915-gram helicopter spinning 350mm carbon fiber blades is not a starter machine regardless of its stabilization suite. Elite 3D pilots seeking sustained smack-3D performance will also find the 3S power system insufficient — that bracket requires a high-voltage 6S platform to prevent RPM decay under maximum collective loading.
